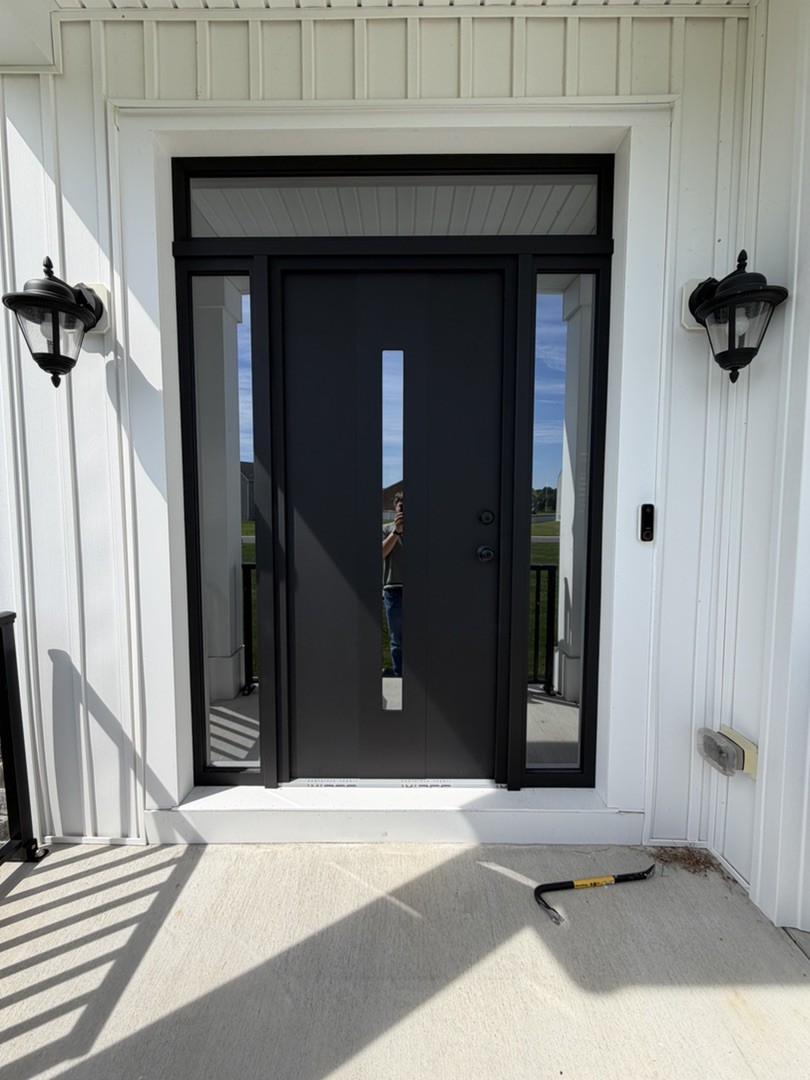

| Model | DIAMOND A |
|---|---|
| Model type | DIAMOND A2 |
| Is Glass | No |
| Color | Black/black Mirrored |
| Panelcolor | black |
| Sidelite transomglasscolor | clear |
| Type of Configuration | Front Doors |
| Actual Sidelites size | 15 13/16" |
| Actual Unit Size | 69" x 95 11/16" |
| Actual Slab Size | 34 13/32" x 79 11/16" |
| Barn door pul | Optional (Black, Stainless steel) |
| Door closer | Optional |
| Electronic keypad | Optional |
| Exterior color | Black |
| Finishing Type | Extra durable painting with reliable protection from UV rays |
| Frame material | Pine timber covered with galvanized steel |
| Frame width | 2 11/16" |
| Glass type of insert | Double sided Tempered glass |
| Hinges type | Concealed hinges Armadillo U3D7800.VPG (White, Black) |
| Interior color | Black |
| Material | Zinc-galvanized steel |
| Note | This door is not hurricane certified |
| Overall thickness of the glass | 1 3/4" |
| Packaging | Pre-hung unit ready for installation , Factory packing on pallet |
| Panel color | Black |
| Panel type | A2 |
| Rough opening Size | 70" x 98 |
| Sealing | double loop sealing |
| Sidelite construction | Glued laminated timber with thermal brake |
| Sidelite Glass construction | Triple glazed sealed unit with two chambers |
| Sidelites count | 2 |
| Sidelites size | 16" |
| Sidelite color | Black |
| Sidelite \ Transom color | Clear |
| Slab thickness | 1 7/8" |
| Nominal Unit Size | 68" x 96" |
| Slab Size | 36" x 80" |
| Sound Insulation | 37 dB |
| Steel thickness | 3/64" |
| Swing direction | LHI |
| Thermal Insulation | thermal breaks, high-density polystyrene foam, pine wood block |
| Threshold | Stainless steel threshold reinforced with zinc-galvanised frame |
| Threshold extension (Optional) | Extension width - 1 7/8" or 2 13/16" Threshold width with extension - 4 9/16" or 5 9/16" |
| Threshold width | 2 11/16" |
| Transom construction | Glued laminated timber with thermal break |
| Transom count | 1 |
| Transom Glass construction | Triple glazed sealed unit with two chambers |
| Transom Length | 69" |
| Transom overall thickness of the glass | 1 1/4" |
| Transom width | 14" - 16" |
| Precut for lock | 2 holes American standard backset 2 3/4" |
| Warranty | 24 months |
In this section, you’ll find real examples of our projects where people have already brought stylish and functional door solutions to life. Each space tells a unique story, combining thoughtful design with practicality.
Explore how different ideas come to life in real interiors and get inspired for your own project. Whether you're looking for a minimalist touch or a bold statement piece, our projects will help you visualize how a door can become an integral part of a well-balanced space.
Want to see
more projects?
Upon placing the order, you will receive a confirmation by e-mail that your order has been received. Production lead time is around 14 business days. ETA will be provided in confirmation-mail as well. You will then get a second e-mail when the order has been shipped. If your order requires multiple shipments, you will be receiving more e-mail confirmations about them. Please, make sure you saved these e-mails (invoices) for the record.
Please note that the rates shown below are for the ground shipping via common carrier. These rates cover such services as residential delivery, delivery appointment, liftgate and pallet jack service. Prices can be changed without notice. We don't charge any additional fees for crating unlike many companies do.
Shipping rates from $80
Lead time starting from 14 business days
Once an order is processed, it is then shipped out via LTL (for large items) or carriers (for smaller items). LTL shipments are curbside delivery only. Ship times vary upon final destination, however the average is 2-4 business days for the East Coast and 5-7 business days for the West Coast. Dealers are also more than welcome to use their own freight company if needed. Please contact Door Design Lab directly for all orders outside of the continental United States.
The buyer may pick up the order by their own means. In order to do that, you need to call us prior to your arrival to the warehouse and schedule a pick-up.
Standard, unmodified, in-stock products may be returned within 30 days. Custom-configured doors are made to order and are non-returnable. See the full Orders & Returns policy.
Answers to the questions we get asked most about these doors.
Both. In the configurator you can buy the slab on its own, or add a frame, casing, extensions and hardware to build a complete pre-hung unit.
Yes. Pick a non-standard height or width in the configurator — the door is manufactured to your specification.
Hinges, handles and locksets are configurable options — what you select in the configurator is listed in your configuration summary and in the cart.
Yes — enroll as a PRO partner to get trade pricing on your account.
Four steps from picking a model to an order confirmation.



Consultation
Pick a door model or get a recommendation from a specialist by phone, email or online chat.
Build your door
Use the “Build a door” configurator to choose size, configuration and applicable options, including hardware.
Payment & shipping info
Enter your shipping and payment info. Please note — we only ship to the conterminous United States.
Confirmation
Get an order confirmation by e-mail, with the ETA for your order.
